Name: Vermona Mono Lancet
SKU: 492492

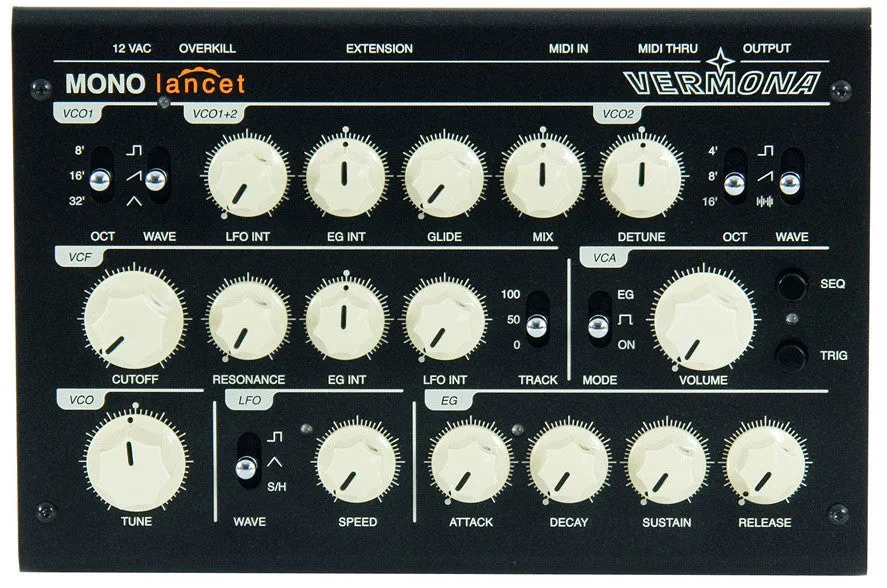

The Mono Lancet is a compact synthesizer with big sound, easy user interface and charm.

Oscillators
Two analogue oscillators take care of a solid sound foundation. Oscillator one creates triangle-, sawtooth- and square waves and can be set one octave lower than the second oscillator. The latter produces white noise instead of the triangle wave.

The pulse width can be modulated through the modulation wheel (MIDI) and/or an external control voltage (see Extension). The glide generator has a legato mode or can always be active.

Filter
The voltage controlled lowpass filter has a slope of 24db per octave. On high resonance settings it starts to self-oscillate and produces a stable sine wave that can be played in a range of about 2 ﾽ octaves. On MIDI site the cutoff frequency can be controlled by velocity and/or aftertouch.

Amplifier
Thereﾒs a good sounding VCA inside the Mono Lancet that can be modulated by the ADSR- or a fixed organ-like envelope. On demand it additionally can respond to velocity.

Modulation
The classical ADSR envelope generator can modulate the VCO- and VCF frequency and the VCA.

The LFO generates rectangle- and triangle waveform as well as sample & hold and is modulation source for VCF and VCO.

Extension
Thereﾒs a 25pin sub-D connector on the rear of the Mono Lancet. It extents the possibilities of the synthesizer enormously through numerous in- and outputs for control voltages and audio signals. PWM and filter input are just two of them.

Technical Specifications
VCO1

Waveform: Square, Sawtooth, Triangle
Octave: 8ﾒ, 16ﾒ, 32ﾒ

VCO2

Waveform: Square, Sawtooth, White Noise
Octave: 4ﾒ, 8ﾒ, 16
Detune /- 7 semitones

VCO1 & 2/

controller for LFO intensity
controller for EG intensity ( /-)
Glide (legato mode or always active)
MIX controller
PWM via MIDI (modulation wheel)
Mastertube /- 1 tone

VCF

24 dB/octave lowpass filter
resonance can be played over a range of 2 1/2 octaves
controller for EG intensity ( /-)
Keytrack: Off, 50%, 100%

VCA

Mode: EG, GATE envelope, ON
LFO

Waveform: Square, Triangle, Sample & Hold
Frequency range: ca. 0,05 Hz ﾖ 250 Hz

Envelope Generator

Attack, Decay, Sustain, Release

MIDI Interface

note on/off
Pitch Bender on/off (CC 84) - affects VCO pitch ( /- 4 tones)
Modulation Wheel on/off (CC 85) - affects pulse width of the VCOs
Aftertouch on/off (CC 86) - affects cutoff frequency
Velocity on/off (CC 87) - affects VCA
Velocity can additionally be set to cutoff frequency (CC 88)
Glide-Switch on/off (CC 89) - glide only works when playing legato
Legato on/off (CC 90) - envelope will not be retriggered when playing legato

Measurement & Weight

Width: ca. 210 mm
Depth: ca. 145 mm
Height: ca. 55 mm
Weight: ca. 750 g

Modular Dock
Mono Lancet Modular Dock
The Modular Dock brings the sound of Mono Lancet to your modular system.
Discover new sound scapes through extended modulation possibilities and use the fantastic Mono Lancet filter to refine external sound sources.
Mono Lancet Modular Dock
Inputs
